Why KNIME, Microsoft Flow, and PowerApps are a perfect marriage

February 18, 2021 — by Lexi Harrison &  Olivier de Bie

Each year, the Melbourne Cup proves itself to be one of the biggest events in Australia. On this day in almost every office, a sweepstake is organized to make the race that little more exciting. For us here at Forest Grove, it is a long-standing tradition of chicken lunch, watching the race, and participating in a sweepstake. Each year one of us had to manually keep track of the tickets, draw horses out of a hat and allow a first-come-first-serve approach to the unallocated horses. However, in this digital age, we were thinking we could improve this old manual method by combining some cool technologies.

This thought got our creative juices flowing and we came up with the sweepstake app using PowerApps, Microsoft Flow, and KNIME.

This tutorial that shows you how we built the app, how we used KNIME Server to deploy the app, creating a REST API, and how we handled GET and POST flow variables.

To create our app, we wanted to use a tool that would enable us to integrate easily with other software components – which in our case were Microsoft Flow and PowerApps. Let’s have a look at an architectural view of how we combined everything. KNIME takes care of transforming the data and creating an application programming interface, or API – to access the data and interact with our other software components, letting them talk to each other.

Why KNIME, Power Flow, and PowerApps are a perfect marriage

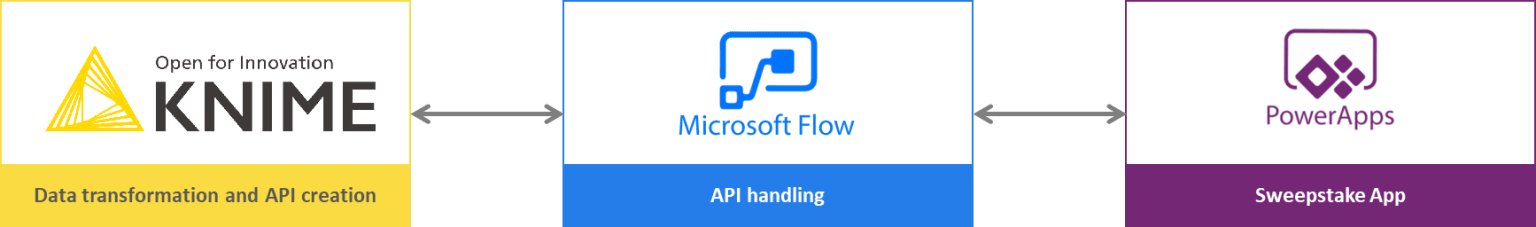

Fig. 1 An architectural view of how we KNIME for data transformation and API creation, Microsoft Flow for API handling, and PowerApps for the sweepstake app.

Deployment - Using KNIME Server to create a REST API

In our application, we needed to create an application programming interface to access data and interact with other software components, i.e. let the different programs talk to each other. The use of KNIME Server Medium enabled us to create a so-called REST API: an interface that enables us to search for something and get results back from the service we’re requesting from.

The REST API in our example is called via a Microsoft Flow, which is triggered from our app, made in PowerApps. Our sweepstake app uses multiple GET and POST requests to receive and send the data.

We designed it to automatically handle:

  • Random selection of horses to employees,
  • Emailing of selected horses to each employee,
  • Calculating unallocated horses
  • A bidding system for unallocated horses
  • Calculating the final winners & the $ amount

Let’s look at how we did it.

GET and POST global variables

We'll look first at how we handled the GET and POST global variables, which were required to open and close the sweepstake bidding automatically

  • GET global variables
  • POST global variables

GET global variables

The sweepstake app uses global variables to open and close the Sweepstake Bidding automatically based on time values.

KNIME workflow

The start and end-time values are stored in a KNIME table on the KNIME Server.

To get the start and end-time values, we create a basic KNIME workflow, which takes care of three things:

  • Reads the variables table, which in this instance is a KNIME table, however this could be any source table
  • Converts the table to a JSON.
  • Outputs the JSON string
Why KNIME, Power Flow, and PowerApps are a perfect marriage

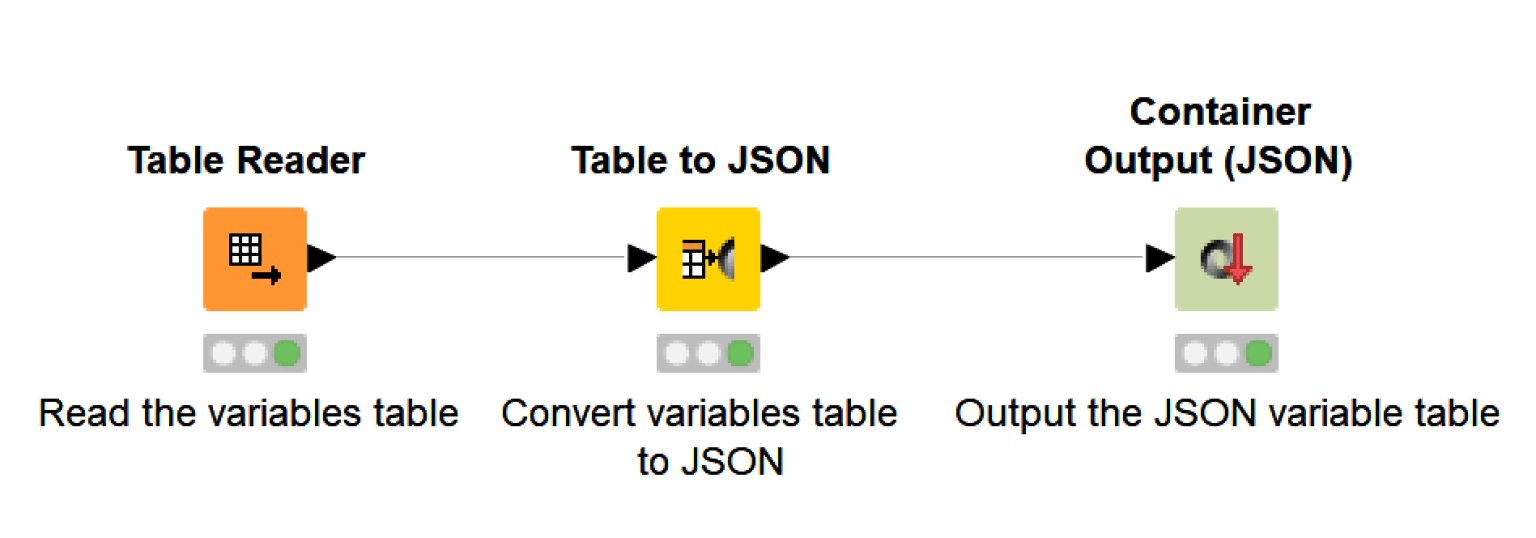

Fig. 2 An excerpt of our workflow which reads the source table, converts the table to a JSON, and outputs the JSON string.

When the workflow is executed, it returns a JSON message in the following format:

Why KNIME, Power Flow, and PowerApps are a perfect marriage

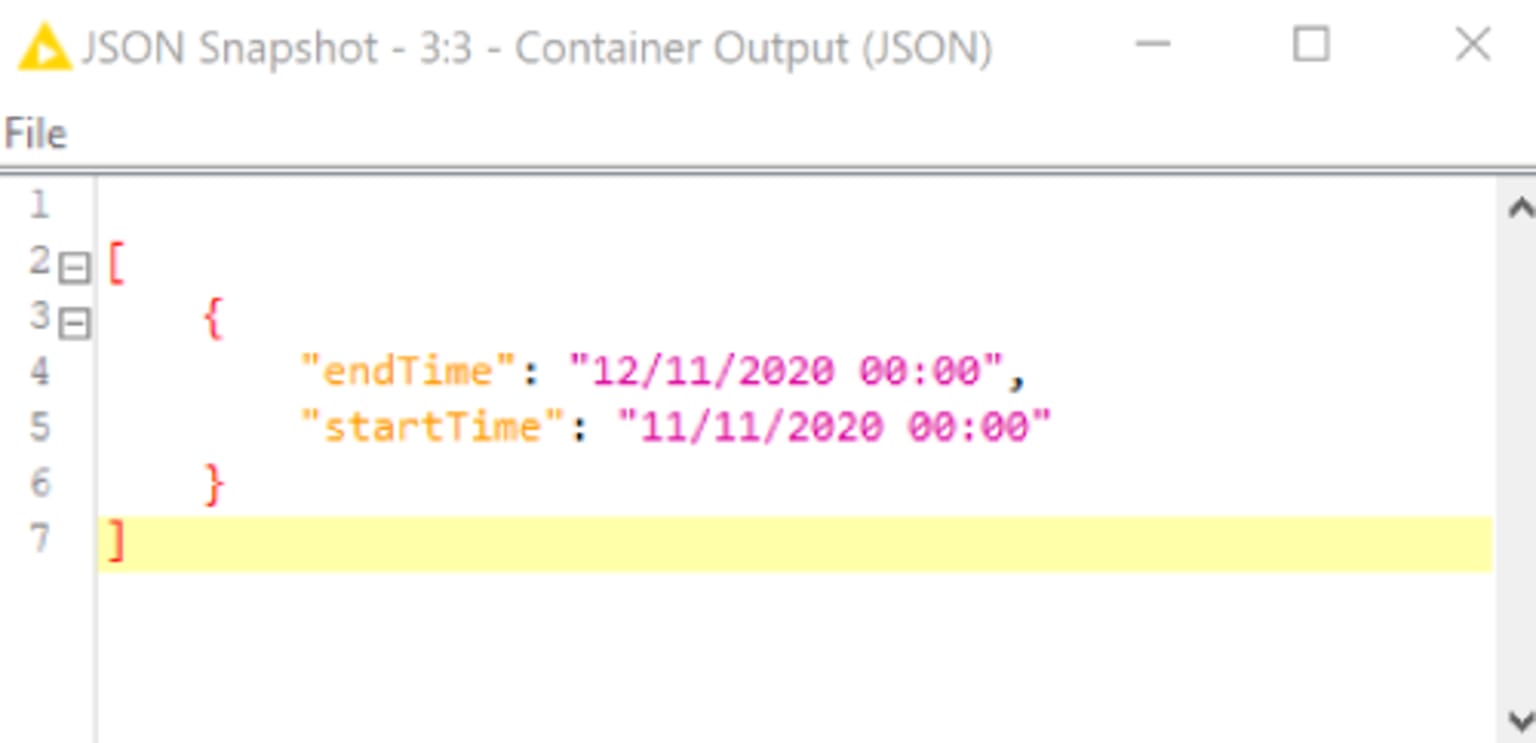

Fig. 3 When our workflow is executed it returns a JSON message in the above format.

The next step is to deploy the workflow to a KNIME Server. Deploying the workflow allows us to execute the workflow via an API call.

Why KNIME, Power Flow, and PowerApps are a perfect marriage
Fig. 4 Deploying the workflow to a KNIME Server. This then allows us to execute the workflow via an API call.

To test this, right click the workflow on the KNIME Server and select “Show API Definition”. This will open a web-browser with a Swagger page with all the API information you will need.

Why KNIME, Power Flow, and PowerApps are a perfect marriage

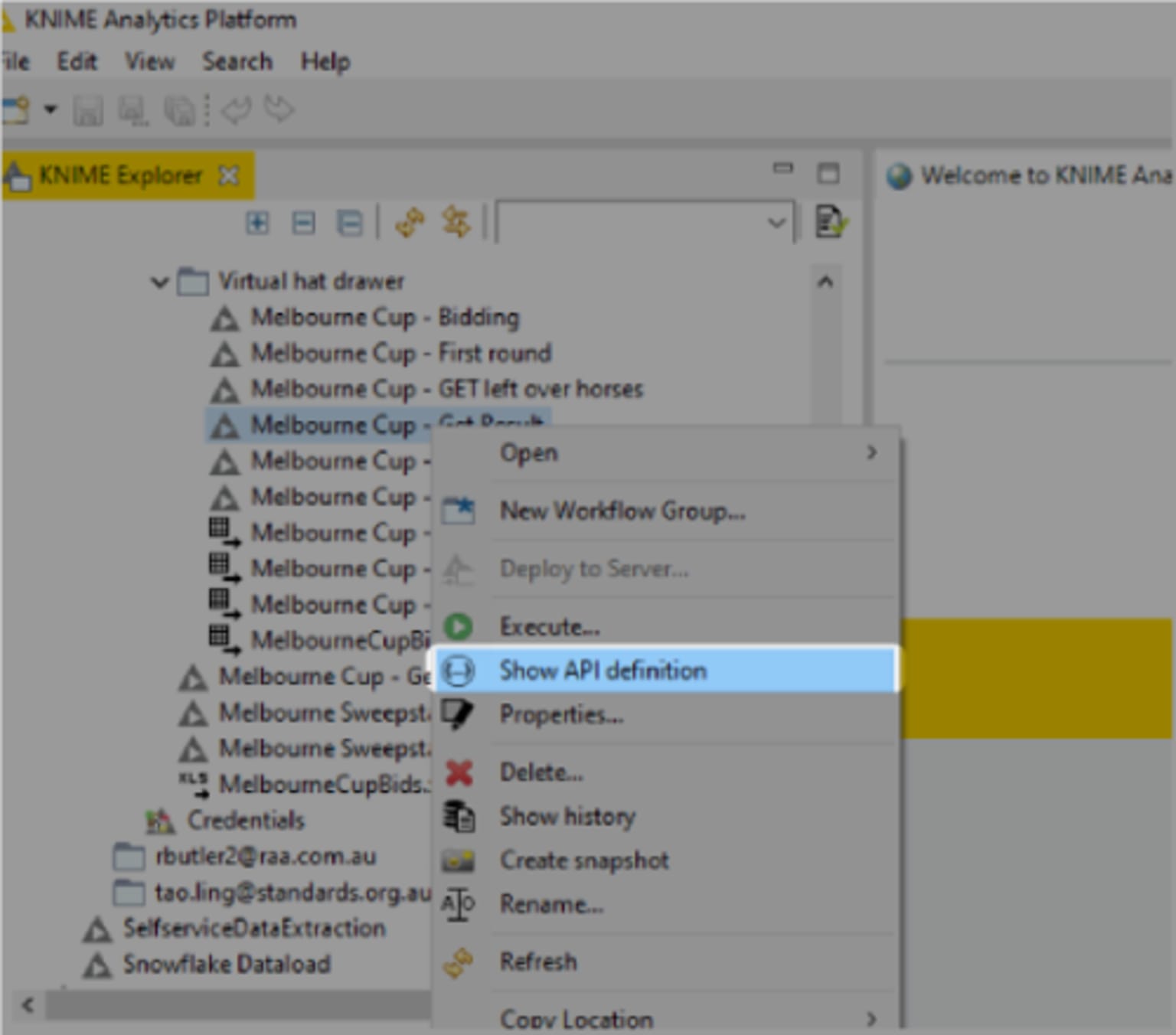

Fig. 5 Right-click the workflow on the KNIME Server and select "Show API Definition" to subsequently open a web-browser with a Swagger page containing all the API information you need.

On the Swagger page, the “Execution” tab contains two different URLs: a POST and a GET URL.

Why KNIME, Power Flow, and PowerApps are a perfect marriage

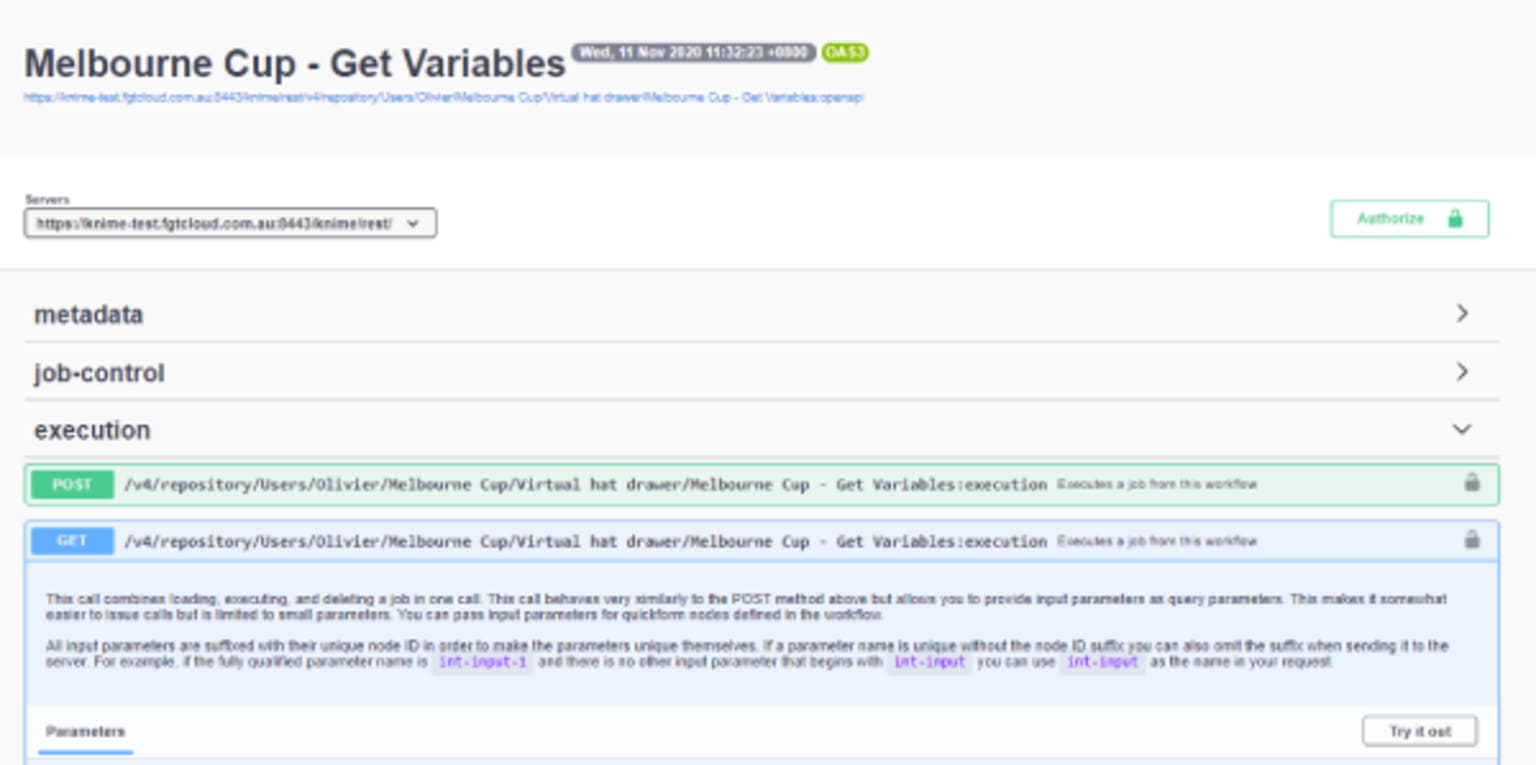

Fig. 6 Swagger page showing two different URLs: a POST URL and a GET URL.

From the Swagger page we can execute the API call and see what the response is. If we successfully executed the GET API, we get the following response:

Fig. 7 After executing the GET API successfully we should get the response as shown above, containing the same JSON message as the JSON output in the workflow, plus other information relating to the workflow. Click image to see a larger version of it.

The response of the API call should contain the same JSON message as the JSON output in the workflow, as well as other information around the workflow itself. This API call shows us that our workflow can be triggered from the app and return our time variables to be used inside the app.

Microsoft Flow

The next step handles getting these values inside the PowerApps application. PowerApps does not allow us to execute an API call, therefore we need to use a separate tool for that called Power Automate or Microsoft Flow. The flow is structured as shown in Figure 8 below. If we run this flow, we should get the same result as in the first run of our workflow in KNIME itself.

The flow structure:

  1. PowerApps - The flow is triggered from within the PowerApps application.
  2. HTTP - The API call is made by executing the GET URL
  3. Parse JSON - The JSON response is then parsed as we only require certain parts of the JSON message: json-output.
  4. Response - Returns that specific message into PowerApps.
Why KNIME, Power Flow, and PowerApps are a perfect marriage
Fig. 8 The structure of the flow: triggered by the PowerApps application; HTTP - the API call is made by executing the GET URL. The JSON response is then parsed; the response returning the specific message to PowerApps.

Now that we successfully created a flow, we can integrate this with our PowerApps application

Integrating with PowerApps

In order to obtain the values in the app, we import the flow via the toolbar “Action” menu and by selecting “Power Automate”. This gives us a list of all the available flows that can be used in the app.

Why KNIME, Power Flow, and PowerApps are a perfect marriage

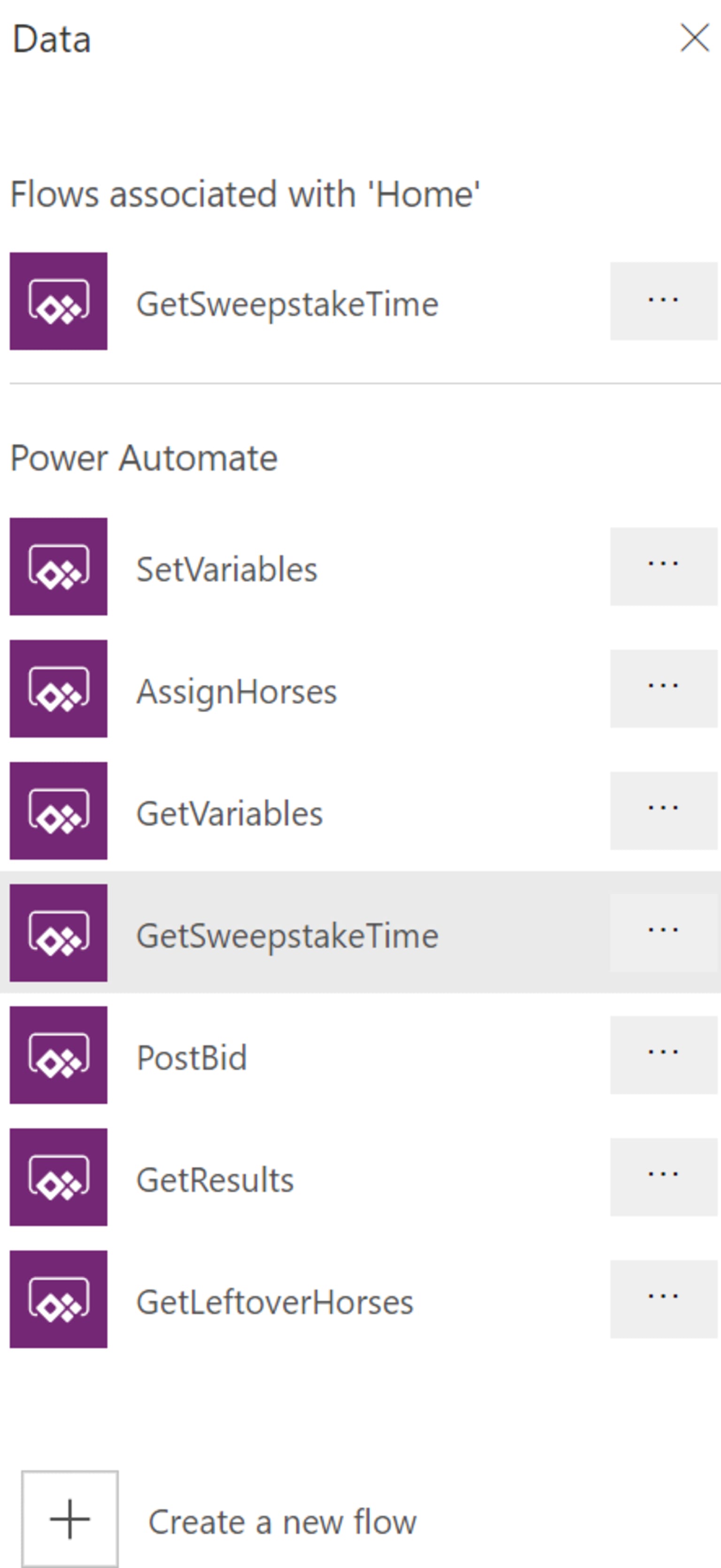

Fig. 9 The list of available flows that can be used in the app.

The flow is imported by selecting the flow; this will then populate the formula bar with the flow.

Why KNIME, Power Flow, and PowerApps are a perfect marriage

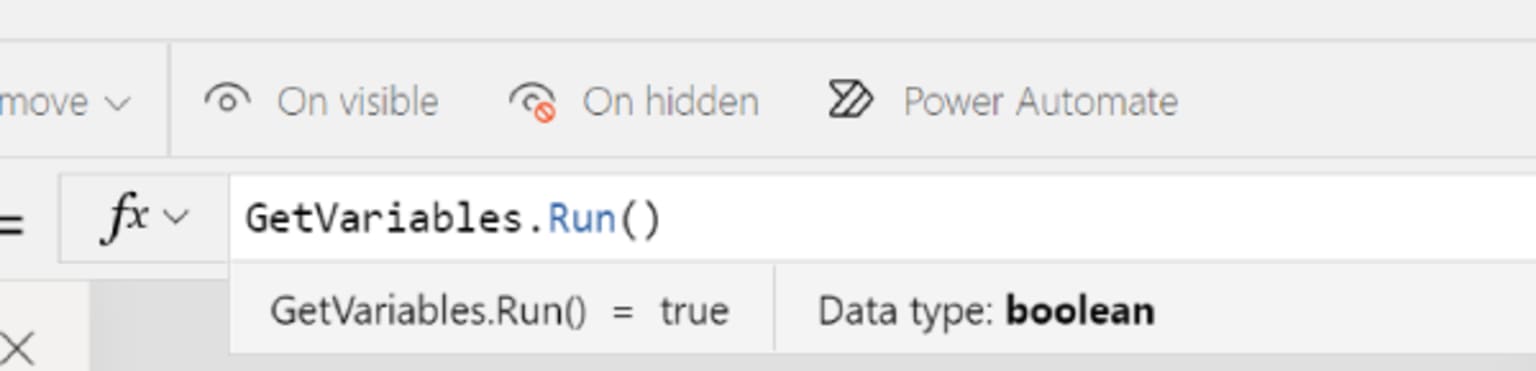

Fig. 10 When the flow is imported, it populates the formula bar with the flow.

If we run the flow, the data will be returned but not captured in the app. In order to capture the data we need to use a Collection via a ClearCollect()

Why KNIME, Power Flow, and PowerApps are a perfect marriage
Fig. 11  After running the flow, the data are returned but not captured in the app. We therefore need to perform a collection via a ClearCollect() function.

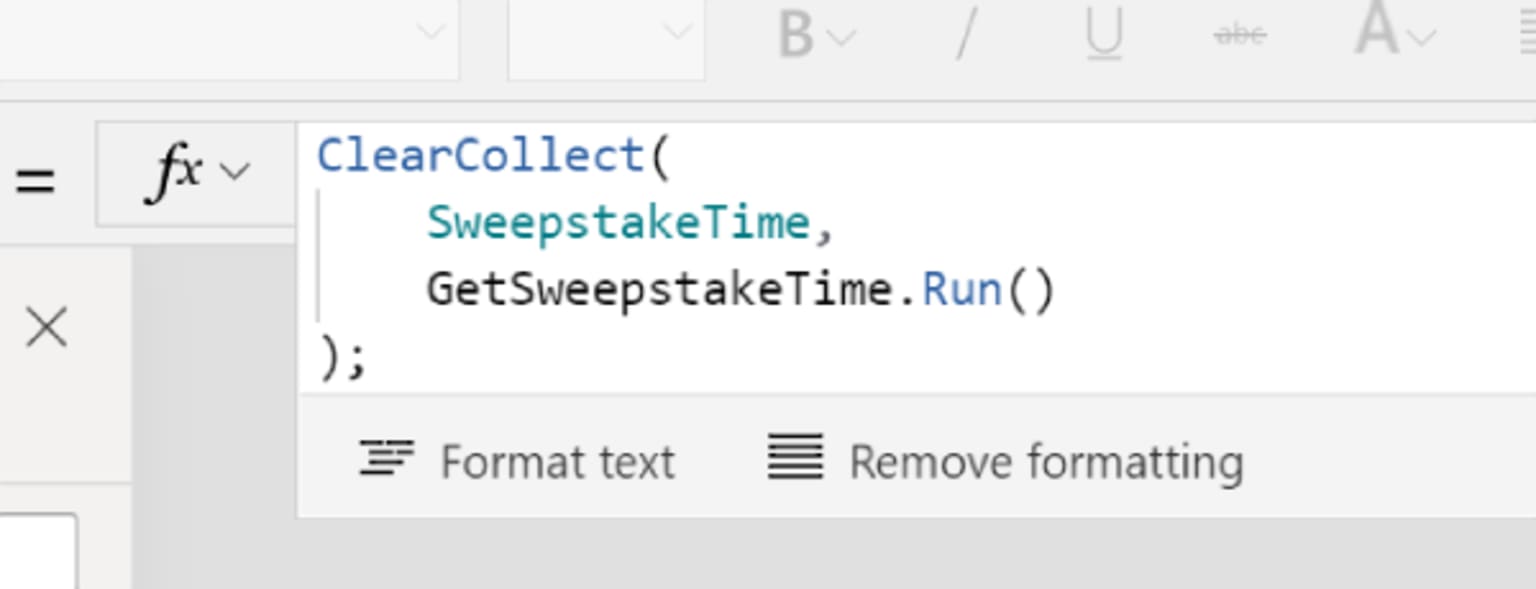

This stores the values from the JSON message into a collection (in this instance we have named this “SweepstakeTime”) and makes this available to be used e.g. startTime. This still returns a table datatype, but when using a First() function, we can select the first line of the collection, e.g. First(SweepstakeTime).startTime .

Why KNIME, Power Flow, and PowerApps are a perfect marriage

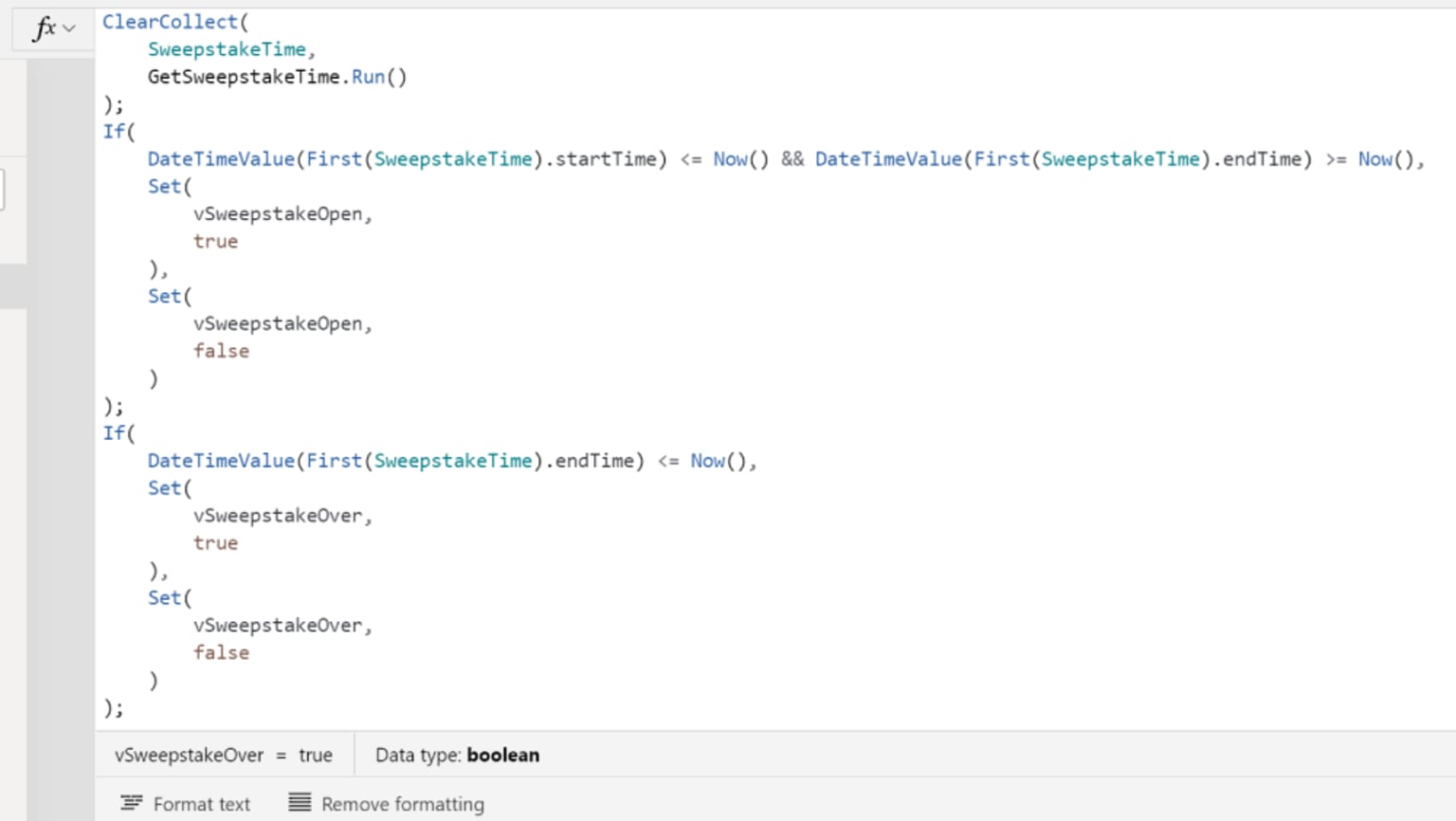

Fig. 12. The values from the JSON message are stored into a collection.

And that is it.

Note: By changing the workflow we could add further data steps, for example reading from a database, or combining information from different sources before returning the JSON string. Now let’s have a look at a POST request.

POST global variables

As we mentioned before, the global variables are set from inside the application. We use two input fields to set the start and end-time and the flow is triggered on the click of a button.

The only difference with sending a POST request compared to a GET request, is that we need to send the data with the request.

Why KNIME, Power Flow, and PowerApps are a perfect marriage

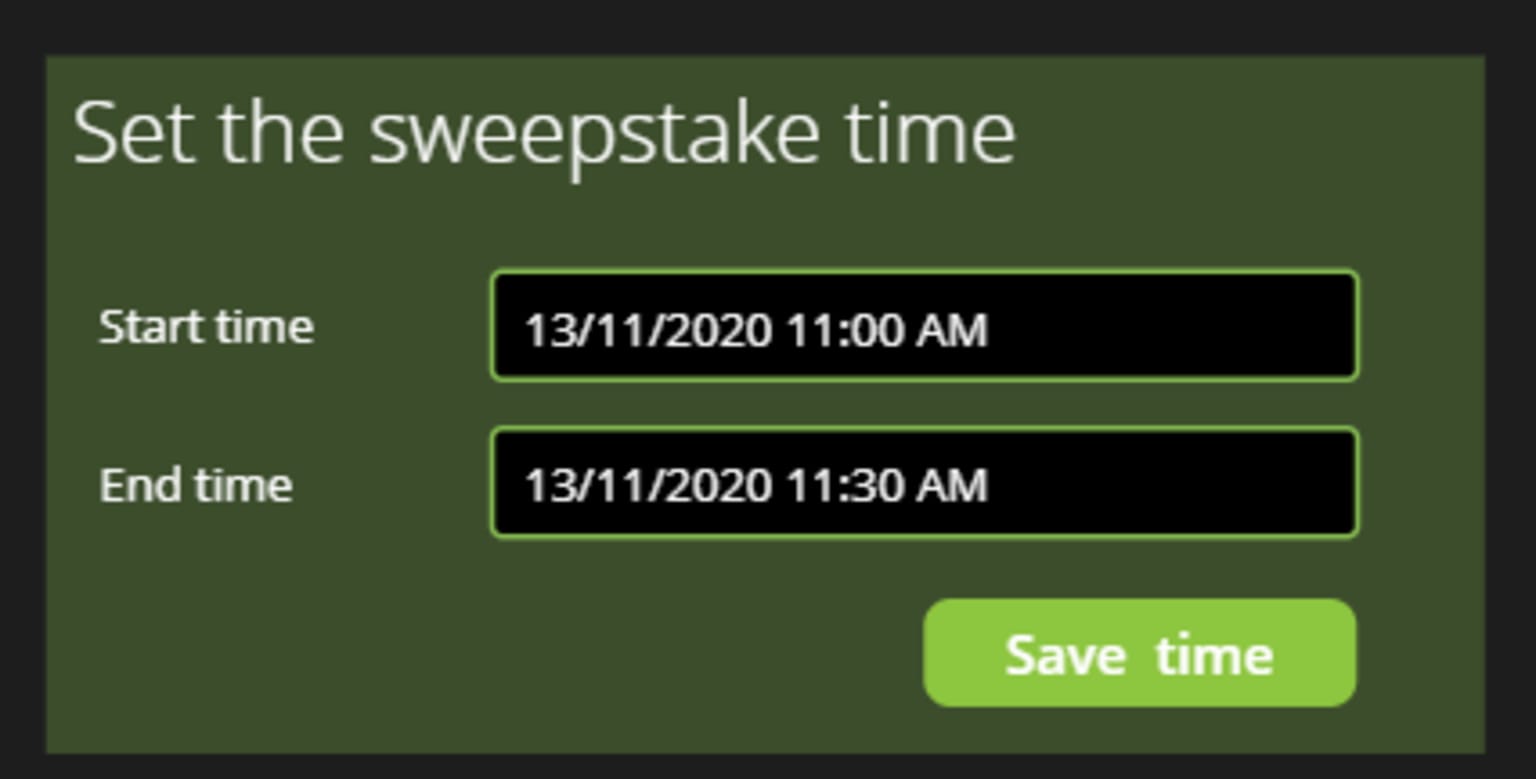

Fig. 13 The input fields to set the start and end time.

KNIME workflow

Let’s start again with our KNIME workflow and make our way up to the app.

We know that we will receive a start and end-time in a JSON format, and so we need to start the workflow with a JSON input node. From the JSON input node, we convert the JSON message into a table and finally save it into a KNIME table.

Why KNIME, Power Flow, and PowerApps are a perfect marriage

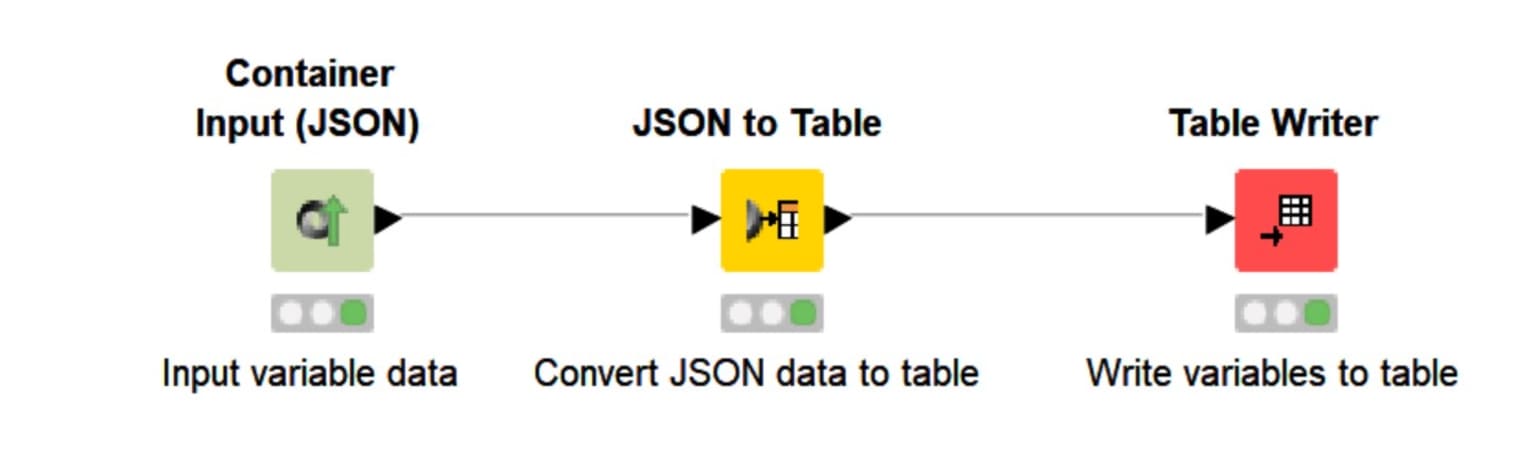

Fig. 14 In our workflow, the JSON message is converted into a table and then saved in a KNIME table.

As before, to call the workflow via an API, we need to deploy the workflow to a KNIME Server. Once deployed, we can get the API URL via the same steps in the GET request using Swagger. Once we get the URL we can move onto Microsoft Flow.

Microsoft Flow

In Microsoft Flow we create a similar flow to that for the GET requests. The flow starts with a trigger from PowerApps, but in contrast to the GET request we first need to capture the input data and compose it into JSON format so we can add it to the HTTP call as a body.

Why KNIME, Power Flow, and PowerApps are a perfect marriage

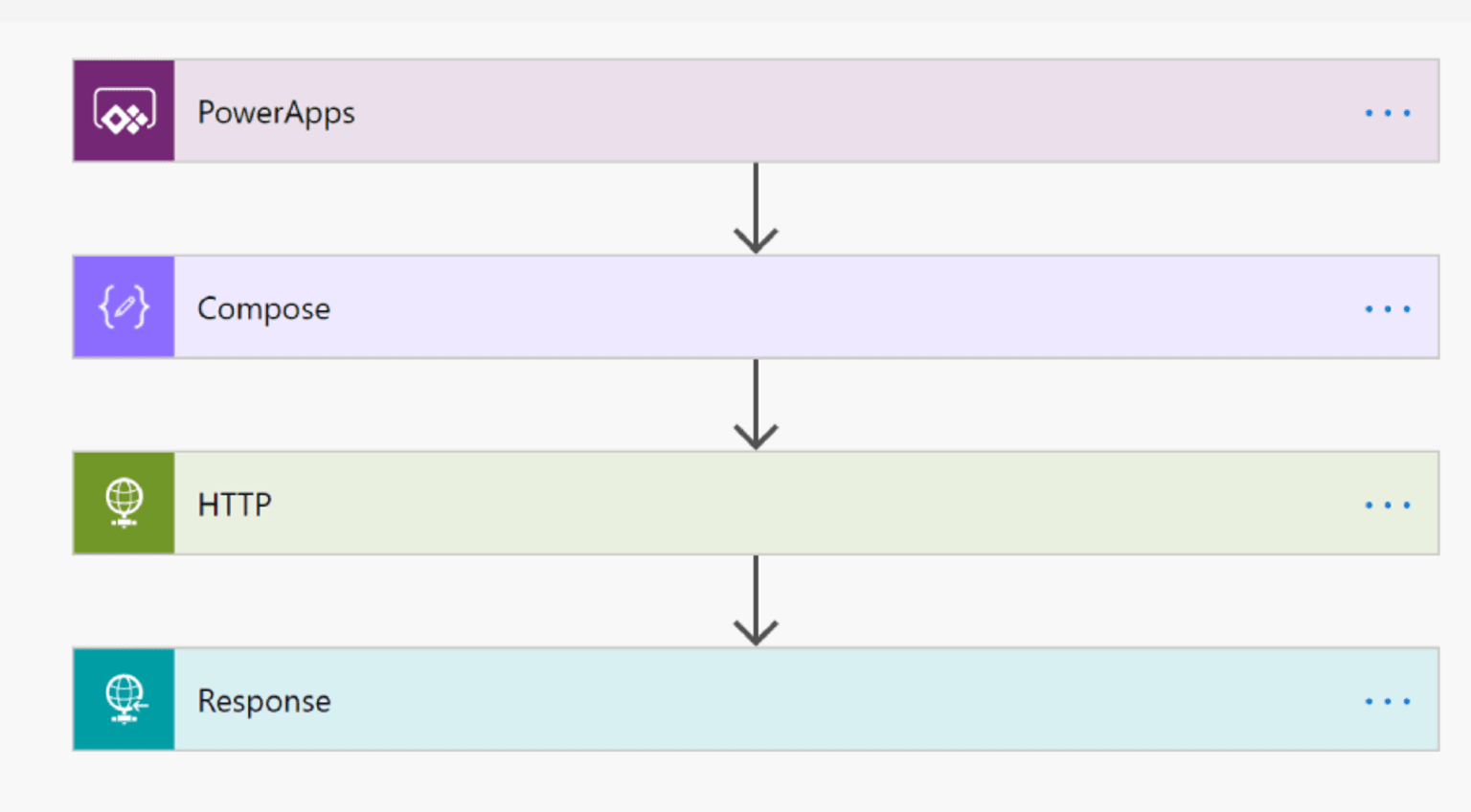

FIg. 15 The structure whereby our input data is captured and composed in JSON format and then added to the HTTP call as body.

In Compose, we add a dynamic content which requests a parameter when the flow is run in PowerApps. In this case we called it “HTTP_Body”.

Why KNIME, Power Flow, and PowerApps are a perfect marriage
Fig. 16 Dynamic content is added to Compose, requesting a parameter when the flow is run in PowerApps. Here, this is called "HTTP_Body".

PowerApps

The last step is to use the Microsoft Flow in the app. We start again with importing it on the button and set it on the variable “OnSelect”.

Why KNIME, Power Flow, and PowerApps are a perfect marriage

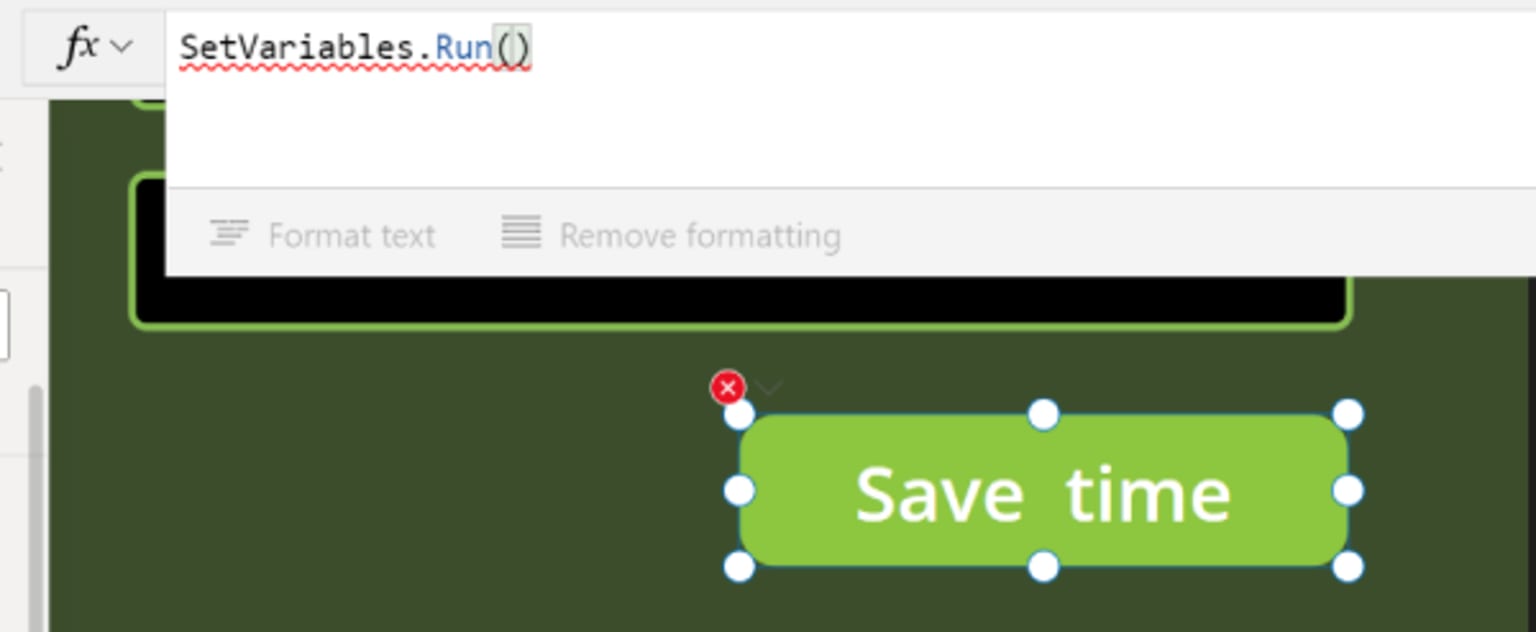

Fig. 17 Importing the flow on the button and setting it with the variable "OnSelect"

As you can see, this produces an error. This is because our “HTTP_Body” is required when the “SetVariable” flow is run. Adding a JSON message built up from the input fields as the “HTTP_Body” parameter resolves the error:

Why KNIME, Power Flow, and PowerApps are a perfect marriage

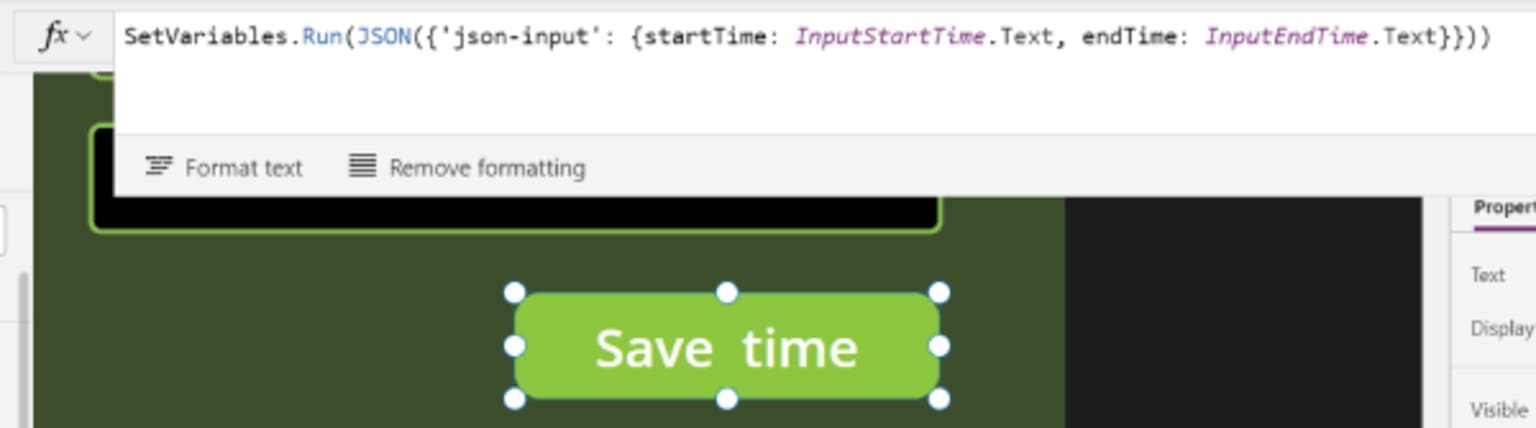

Fig. 18 Resolving our error by adding a JSON message built up from the input fields as the "HTTP_Body" parameter.

And that is it.

With these simple steps we can make a fully functional app, where data is pushed and pulled.

The end-to-end architecture

Let’s now have a look at how we realized automation of

  1. The random selection of horses to employees,
  2. The Emailing of selected horses to each employee,
  3. Calculating unallocated horses
  4. A bidding system for unallocated horses
  5. Calculating the final winners & the $ amount

Allocating horses - Emailing to employees - Calculating unallocated horses

Due to time constraints, to start the workflow we manually input a list of horses with their number, and a list of employee names with their email addresses. To randomly assign a horse we shuffled both the employee names and the horse names joining these two on RowID. We then brought the horse number and employee email address back to the list of employee names and horse names.

We created two tables: "Leftover Horses" – a list of unallocated horses and "Assigned Horses" – the full list of employee names and their assigned horse. Finally, each employee received a bespoke email with their allocated horses name and number.

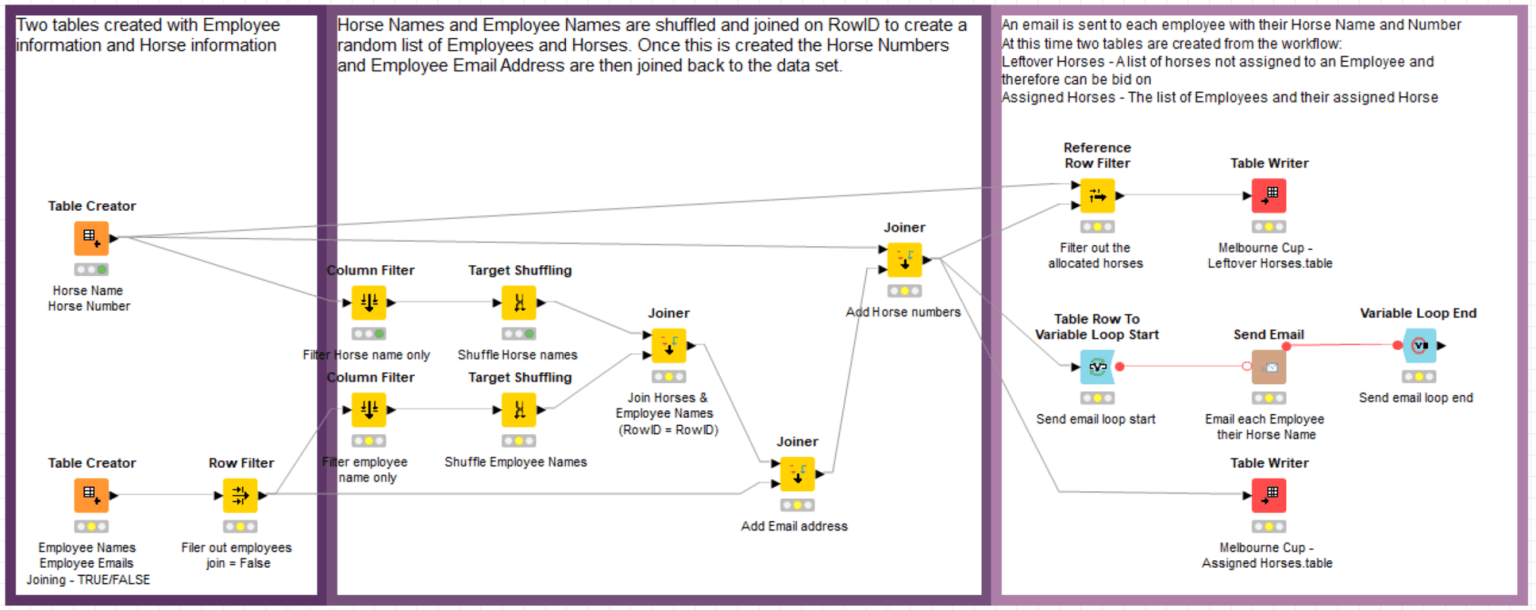

Fig. 19 Our KNIME workflow for allocating horses, emailing colleagues, and calculating unallocated horses. Click image to see a larger version of it.

The bidding system

As above, the ‘bidding system’ was housed on PowerApps and utilized data from the KNIME workflows.

Until bidding was opened, end users would be presented with a holding screen, as shown below:

Why KNIME, Power Flow, and PowerApps are a perfect marriage

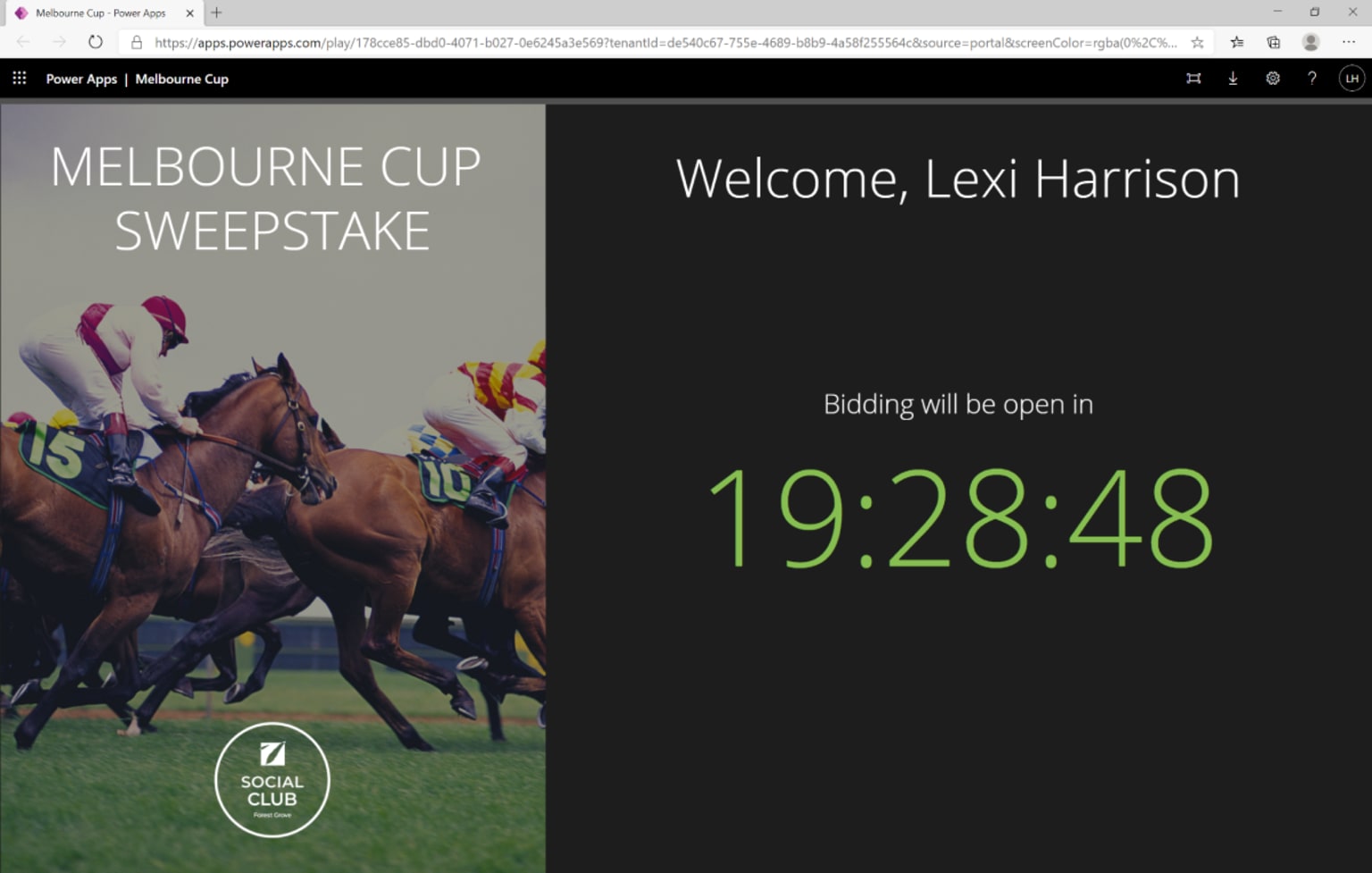

Fig. 20 The holding screen shown to end users until bidding is opened

Once bidding opened, end users would be presented with a list of horses to bid on (Leftover Horses table in KNIME) and a text area to add/submit their bid amount.

Why KNIME, Power Flow, and PowerApps are a perfect marriage

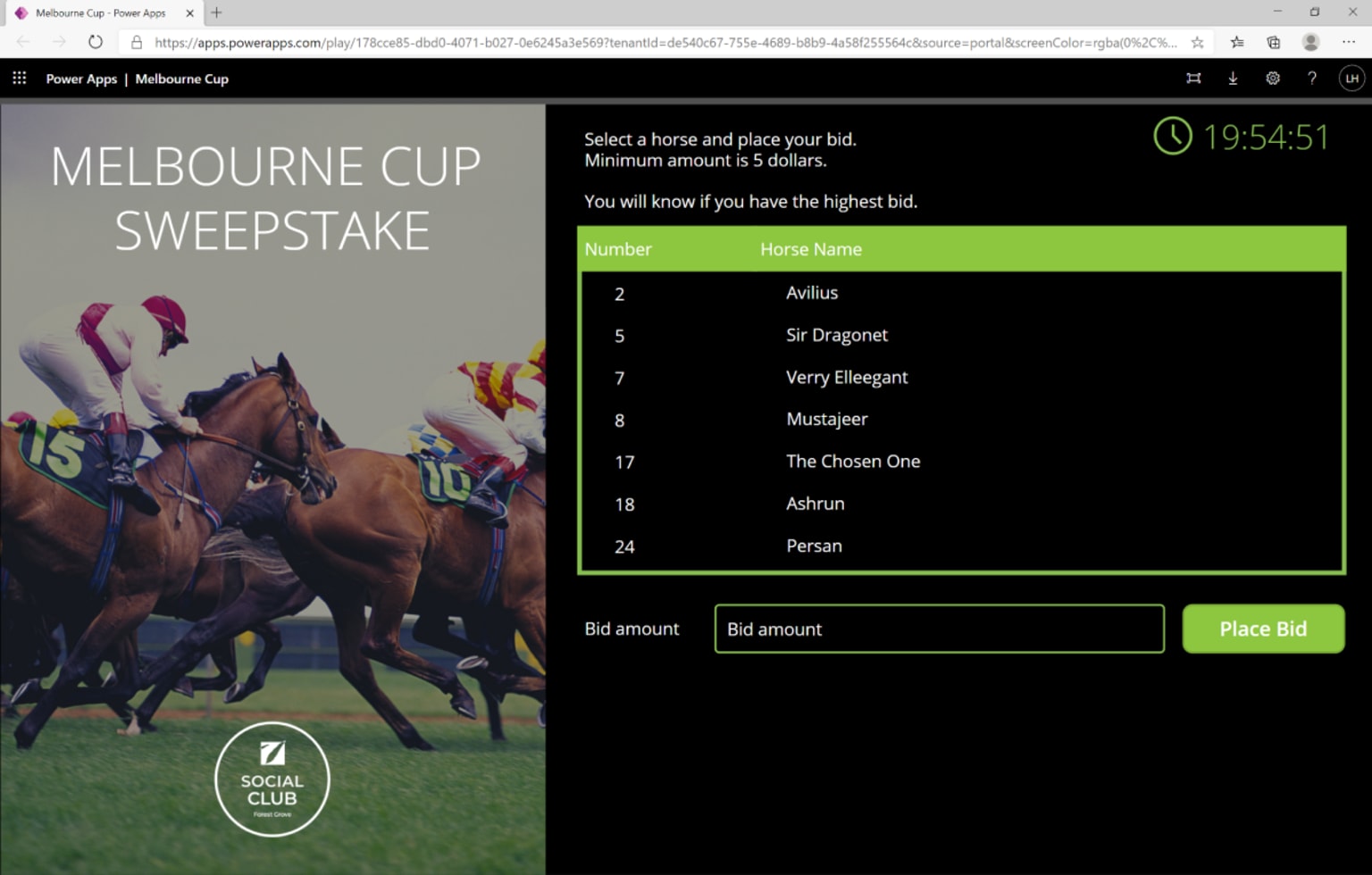

Fig. 21 The screen end users see when bidding is opened, showing the list of horses to bid on and text box to submit their bid amount

As soon as an end user places a bid, the workflow (below) would run causing the employee name (as per AD Account), the horse and the bid amount to flow into KNIME from PowerApps via API call (POST request). This data are then added to the full table of all bids, MelbourneCupBids.

Next the workflow calculates these three scenarios, based on the new bid for the particular horse:

  1. If the bid amount is the highest,
  2. If the bid amount is the same as the current highest bid,
  3. If the bid amount is not the current highest bid

Messages are the output dependent on the above scenario and sent back to PowerApps via the API call to advise the bidder of their status, which is either:

1. You are currently the highest bidder,

2./3. You have not outbid the highest bidder

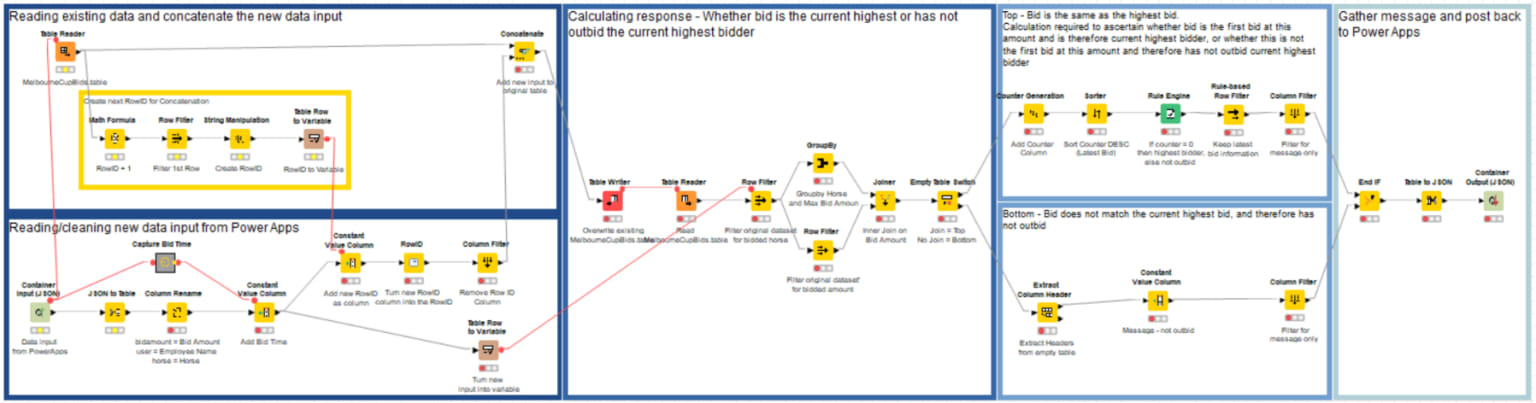

Fig. 22 The KNIME workflow that runs as soon as an end user has placed a bid, causing the employee name, horse, and bid amount to flow into KNIME from PowerApps via an API call (POST request). Click image to see a larger version of it.

Calculating the final winners & the $ amount

Internally we decided each ticket would be $5 for the initial horse allocation and the unallocated horses would be bid on. The final amount from the initial input and bidding would be split as per the below:

1st Place – 60%

2nd Place - 25%

3rd Place – 10%

Last Place – 5%

Of course, we needed a workflow to handle this!

An initial list was calculated using the assigned horses table, adding a constant value column “bid amount” with the value 5 (initial bid amount) and then unallocated horses with the highest bid amount and employee name was concatenated. This list then contained the total amount, in order to be split into the four criteria’s. Next, we needed to bring in the results, to do this we incorporated webpage scraping, in a loop we were able to obtain a full list of horse numbers and their final positions in the race. Due to awarding last place 5% of the total, we also needed to calculate the last place horse, excluding “did not start” and “did not finish” horses. We were then able to create the full list of horses, employees and winning $ amount.

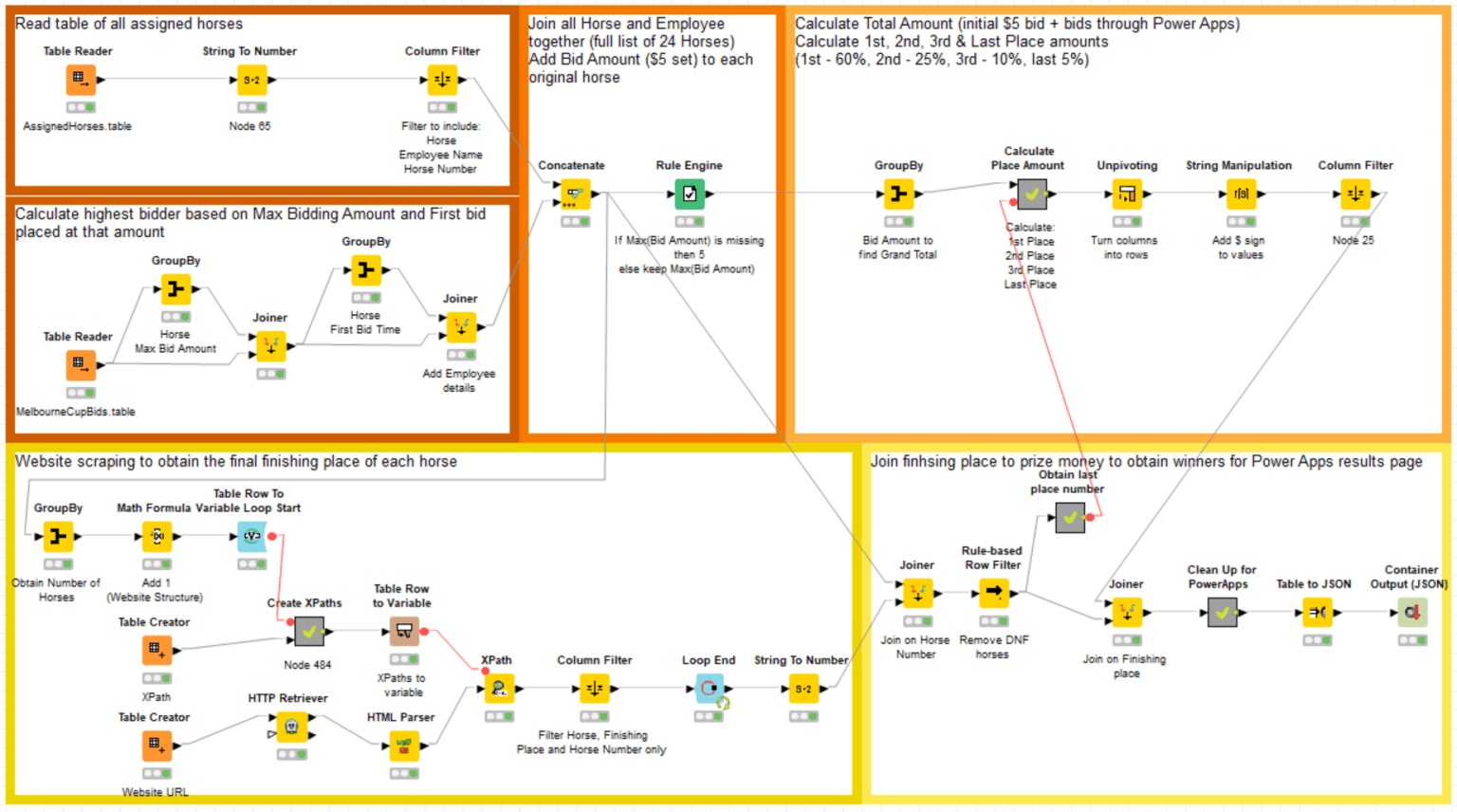

Fig. 23 KNIME workflow to calculate the final winners and the amount. Click image to see a larger version of it.

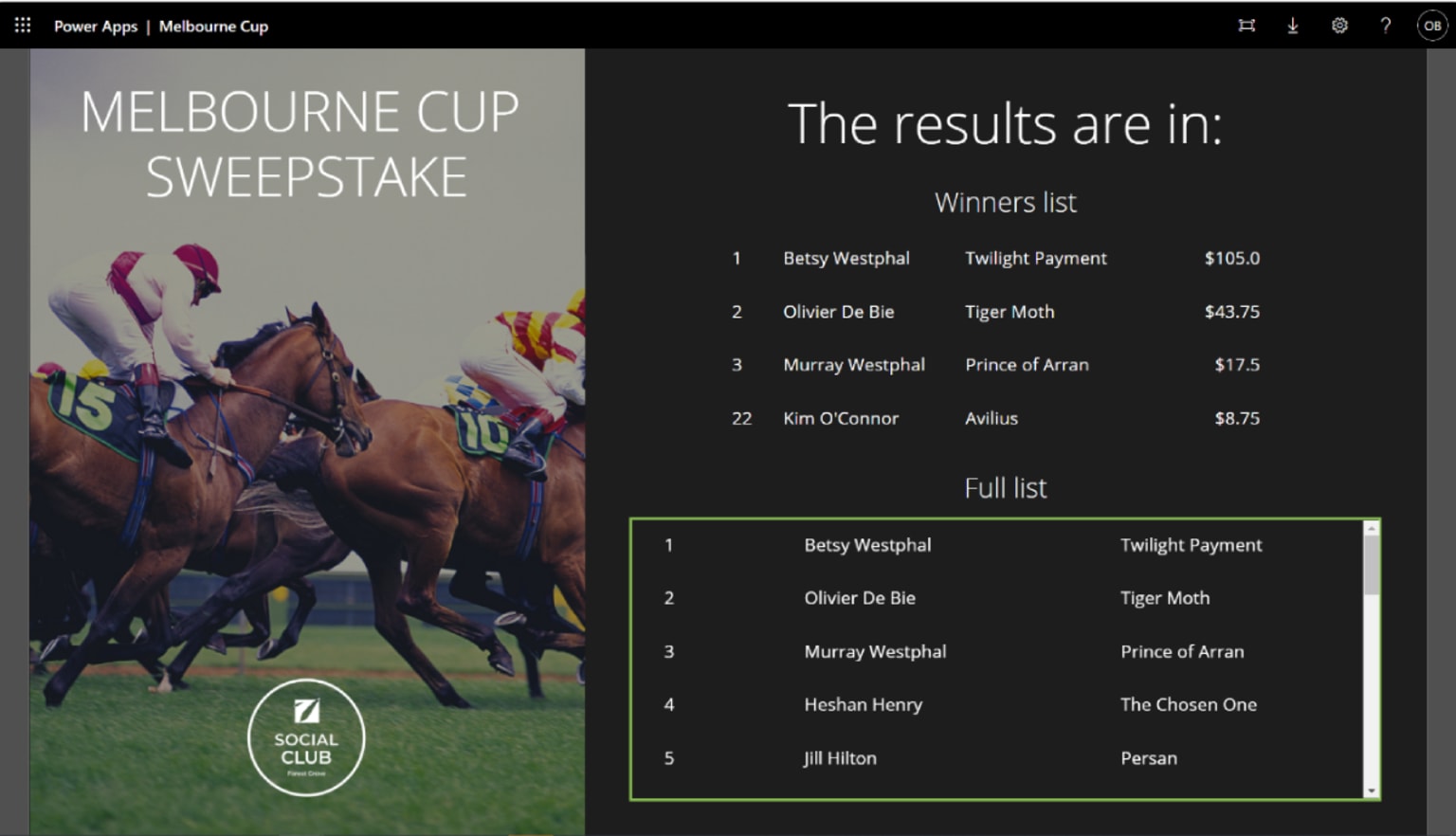

Finally, we were able to send the final results back to PowerApps - using a trusty API call - for everyone to see!
